SECTION 501-11: Glass, Frames and Mechanisms	2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION	Procedure revision date: 01/07/2013

Window Regulator and Motor — Rear Quarter

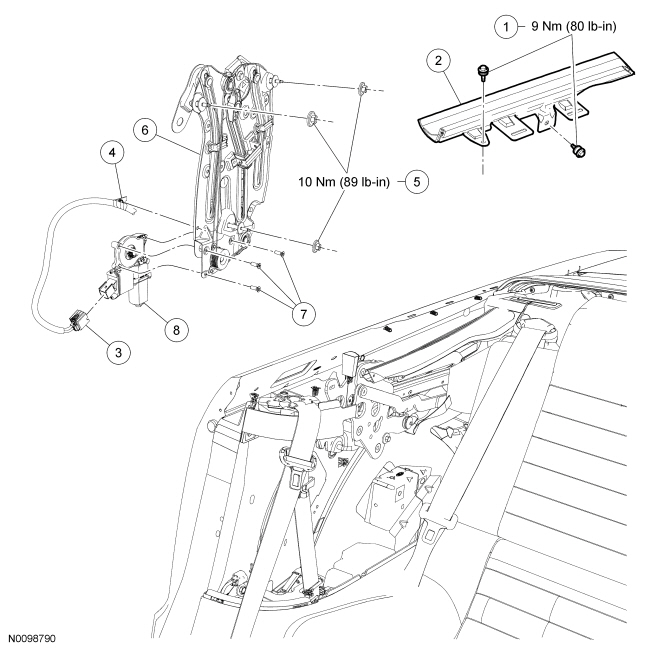

Item	Part Number	Description
1	W505424	Rear quarter window inner belt weatherstrip bolts (2 required)
2	76297B06 RH/ 76297B07 LH	Rear quarter window inner belt weatherstrip
3	—	Rear quarter window motor electrical connector (part of 14A017)
4	—	Rear quarter window regulator and motor harness locator (part of 14A017)
5	N621907	Rear quarter window regulator and motor nuts (3 required)
6	7630306 RH/ 7630307 LH	Rear quarter window regulator and motor
7	—	Rear quarter window regulator motor screws (3 required)(part of rear quarter window motor)
8	6323394 RH/ 6323395 LH	Rear quarter window regulator motor

Removal and Installation

Remove the rear quarter window glass. For additional information, refer to Window Glass — Rear Quarter, Convertible in this section.

Remove the 2 bolts and the rear quarter window inner belt weatherstrip.
- To install, tighten to 9 Nm (80 lb-in).

Disconnect the electrical connector from the rear quarter window motor.

Remove the harness locator from the rear quarter window regulator and motor assembly.

NOTE: Make certain not to disturb the jackscrews when removing the rear quarter window regulator and motor assembly nuts.
Remove the 3 nuts and the rear quarter window regulator and motor assembly.
- To install, tighten to 10 Nm (89 lb-in).

If installing a new rear quarter window motor assembly, remove the 3 rear quarter window motor screws.

To install, reverse the removal procedure.
- Adjust the quarter window glass as necessary. For additional information, refer to Window Glass Adjustment — Rear Quarter, Convertible in this section.
