SECTION 501-14: Handles, Locks, Latches and Entry Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Exterior Door Handle

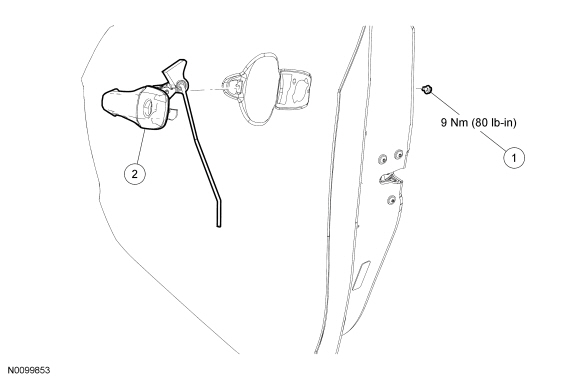

NOTE: Driver door shown, passenger door similar.


Item Part Number Description
1 W714939 Exterior door handle bolts (1 required LH door/2 required RH door)
2 6322405/ 6322404 Exterior door handle (LH/RH)

Removal and Installation

  1. Raise the door window glass to the full-up position.
  1. Remove the door trim panel. For additional information, refer to Section 501-05 .
  1. For the driver door, remove the door lock cylinder. For additional information, refer to Door Lock Cylinder in this section.
  1. Open the clip, and disconnect the exterior door handle actuating rod.
  1. Remove the exterior door handle bolts (1 on the driver door, and 2 on the passenger door).
  1. Slide the exterior door handle rearward and remove.
  1. To install, reverse the removal procedure.
