SECTION 501-14: Handles, Locks, Latches and Entry Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Hood Latch Release Handle

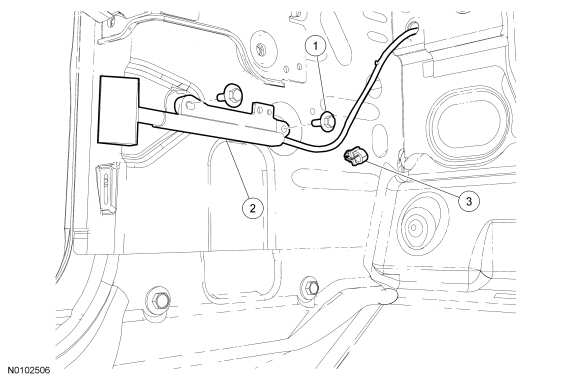

Hood Latch Release Handle

Item Part Number Description
1 W611103 Hood latch release handle bolts (2 required)
2 16916 Hood latch release handle and cable
3 W712867 Hood latch release cable clip

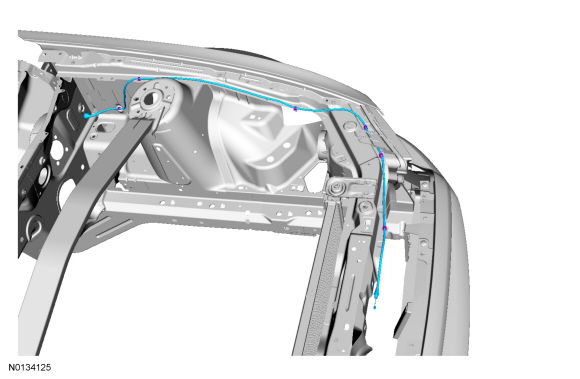

Hood Latch Release Cable Routing

Removal and Installation

  1. Remove the hood latch. For additional information, refer to Hood Latch in this section.
  1. Disconnect the hood latch release cable clips.
  1. Remove the LH A-pillar lower trim panel. For additional information, refer to Section 501-05 .
  1. Remove the 2 hood latch release handle bolts.
  1. Remove the hood latch release handle and cable.
  1. To install, reverse the removal procedure.
