SECTION 501-14: Handles, Locks, Latches and Entry Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Luggage Compartment Lid Latch

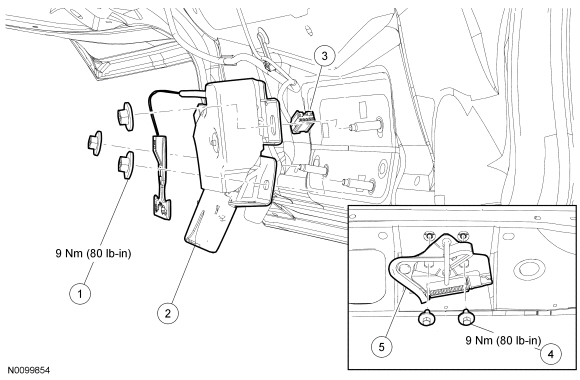

Item Part Number Description
1 W711470 Luggage compartment lid latch nuts (3 required)
2 6343200 Luggage compartment lid latch
3 — Luggage compartment lid latch electrical connector (part of 14A005)
4 W503823 Luggage compartment lid striker bolts (2 required)
5 5443252 Luggage compartment lid striker

Removal and Installation

  1. Remove the luggage compartment lid trim panel.
  1. For convertible vehicles, remove the luggage compartment lid lock cylinder. For additional information, refer to Luggage Compartment Lid Lock Cylinder — Convertible in this section.
  1. For convertible vehicles, remove the luggage compartment lid lock cylinder actuating guide clip and pull the cable out from behind the luggage compartment trim panel.
  1. Disconnect the luggage compartment lid latch electrical connector.
  1. Remove the 3 luggage compartment lid latch nuts.
  1. Remove the luggage compartment lid latch.
  1. To install, reverse the removal procedure.
