SECTION 501-19: Bumpers
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Bumper — Rear

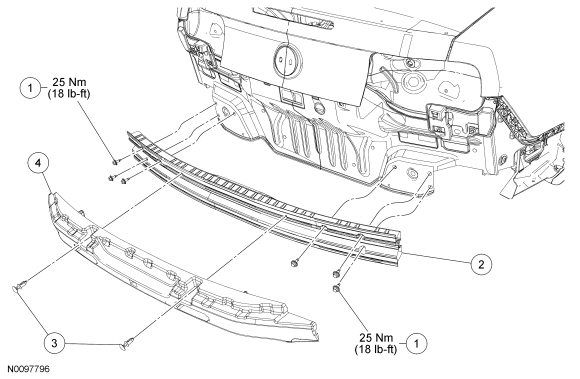

Item Part Number Description
1 W711097 Rear bumper bolts (6 required)
2 17775 Rear bumper
3 403D24 Rear bumper isolator pin-type retainers
4 17E899 Rear bumper isolator

Removal and Installation

  1. Remove the rear bumper cover. For additional information, refer to Bumper Cover — Rear in this section.
  1. Remove the 2 isolator pin-type retainers and remove the rear bumper isolator.
  1. Remove the 6 rear bumper bolts and the rear bumper.
  1. To install, reverse the removal procedure.
