2014 Mustang Workshop Manual

SECTION 502-00: Uni-Body, Subframe and Mounting System	2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION	Procedure revision date: 01/07/2013

Crossmember — Front

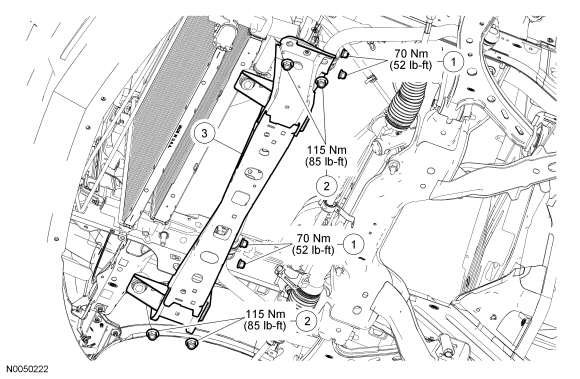

Item	Part Number	Description
1	W520213	Front stabilizer bar bracket nuts
2	W707246	Front crossmember nuts
3	5019	Front crossmember

Removal and Installation

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .

If equipped, remove the crossmember brace. For additional information, refer to Crossmember Brace — Exploded View in this section.

Release the brake line from the 2 clips on the front crossmember.

Loosen the A/C line bracket nut and release the A/C line bracket from the front crossmember.
- To install, tighten to 7 Nm (62 lb-in).

Release the power steering line locator from the crossmember.

Using a suitable tool, support the radiator.

Remove the 4 front stabilizer bar bracket nuts.
- To install, tighten to 70 Nm (52 lb-ft).

NOTE: Two technicians are needed to carry out this step.
Remove the 4 nuts and the front crossmember.
- To install, tighten to 115 Nm (85 lb-ft).

To install, reverse the removal procedure.
