SECTION 303-01C: Engine — 5.8L (4V)
2014 Mustang Workshop Manual
IN-VEHICLE REPAIR
Procedure revision date: 01/07/2013

Oil Level Indicator and Tube


Material
Item Specification
Motorcraft® SAE 5W-50 Full Synthetic Motor Oil
XO-5W50-QGT 		WSS-M2C931-B

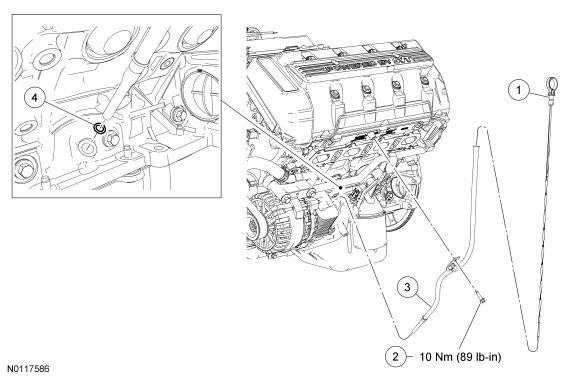

Item Part Number Description
1 6750 Oil level indicator
2 N806155 Oil level indicator tube bolt
3 6754 Oil level indicator tube
4 — O-ring seal

Removal and Installation

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .
  1. Remove the LH exhaust manifold. For additional information, refer to Exhaust Manifold — LH in this section.
  1. Remove the oil level indicator.
  1. Remove the oil level indicator tube bolt.
  1. Remove the oil level indicator tube.
  1. To install, reverse the removal procedure.
