SECTION 204-02: Rear Suspension
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Stabilizer Bar

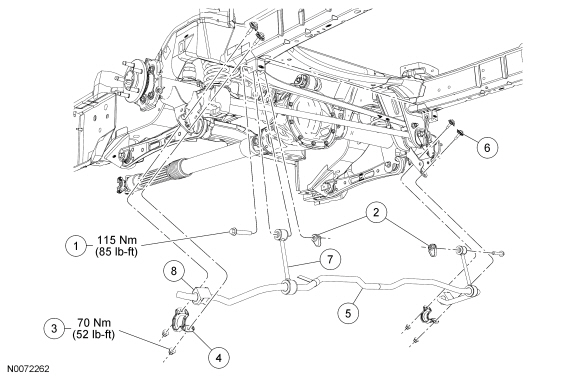

Item Part Number Description
1 W708737 Stabilizer bar link bolt (2 required)
2 W712385 Stabilizer bar link clip nuts (2 required)
3 W520213 Stabilizer bar bracket nut (4 required)
4 5486 Stabilizer bar bracket (2 required)
5 5A771 Stabilizer bar
6 W711368 Stabilizer bar bracket clip stud (4 required)
7 5C488 Stabilizer bar link (2 required) (also part of 5A771)
8 4A037 Stabilizer bar bushing (2 required) (also part of 5A771)

Removal and Installation

NOTICE: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. New parts must be installed with the same part numbers or equivalent part, if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .
  1. Remove and discard the stabilizer bar link bolts and clip nuts.
  1. Remove the stabilizer bar bracket nuts, studs, brackets and stabilizer bar.
  1. If necessary, remove the stabilizer bar bushings and links. For additional information, refer to Stabilizer Bar Link in this section.

  1. NOTICE: The stabilizer bar is equipped with a tag. This tag indicates the LH side of the stabilizer bar. When installing a new stabilizer bar, make sure the tag is on the LH side of the vehicle or damage to the stabilizer bar may occur.

    To install, reverse the removal procedure.
