Brake Disc Shield

Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1. Remove the brake disc. For additional information, refer to Brake Disc in this section.

Vehicles with 2 or 4 piston calipers

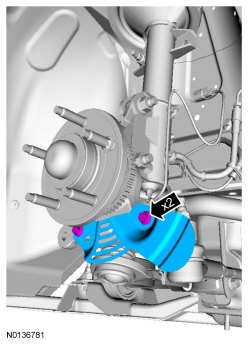

NOTE: 2 piston caliper shown.

2. • To install, tighten to 20 Nm (177 lb-in).

Vehicles with 6 piston calipers

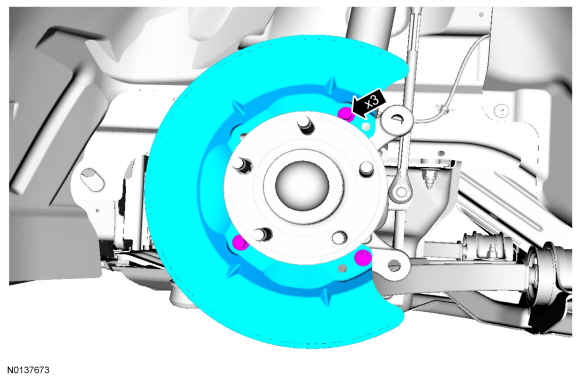

3. • To install, tighten to 20 Nm (177 lb-in).

Installation

1. To install, reverse the removal procedure.
