Fuel Level Sender

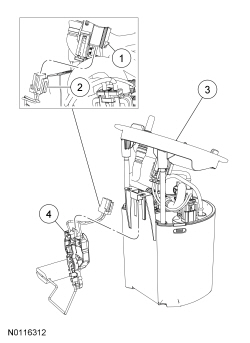

3.7L shown, others similar

Removal

 WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

 WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

 WARNING: When handling fuel, always observe fuel handling precautions and be prepared in the event of fuel spillage. Spilled fuel may be ignited by hot vehicle components or other ignition sources. Failure to follow these instructions may result in serious personal injury.

 WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

1. Remove the FP module. For additional information, refer to Fuel Pump Module in this section.

2. Disconnect the fuel level sender electrical connector.
   • Note the fuel level sender wire routing and retention clip locations for installation.

3. Remove the wires from the retention clip.

4. Depress the lock tab and remove the fuel level sender from the FP module.

Installation

1. Install the fuel level sender onto the FP module.

2. Position the wires into the retention clip.

3. Connect the fuel level sender electrical connector.

4. Install the FP module. For additional information, refer to Fuel Pump Module in this section.
