SECTION 415-00: Information and Entertainment Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Subwoofer Amplifier — Luggage Compartment

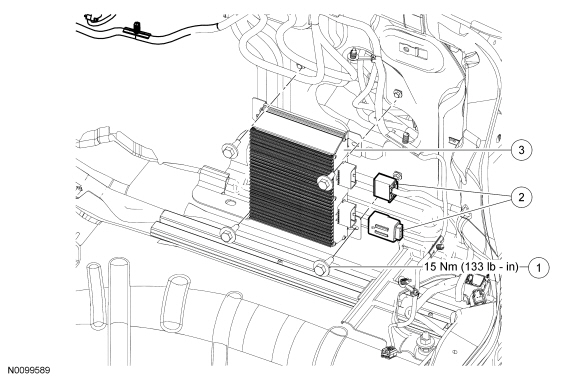

Item Part Number Description
1 W704875 Luggage compartment subwoofer amplifier bolts (4 required)
2 — Luggage compartment subwoofer amplifier electrical connectors (part of 14A005)
3 18C808 Luggage compartment subwoofer amplifier

Removal and Installation

  1. Remove the speaker enclosure. For additional information, refer to Speaker Enclosure .
  1. Disconnect the luggage compartment subwoofer amplifier electrical connectors.
  1. Remove the 4 bolts and the luggage compartment subwoofer amplifier.
  1. To install, reverse the removal procedure.
