SECTION 417-01: Exterior Lighting
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Ballast

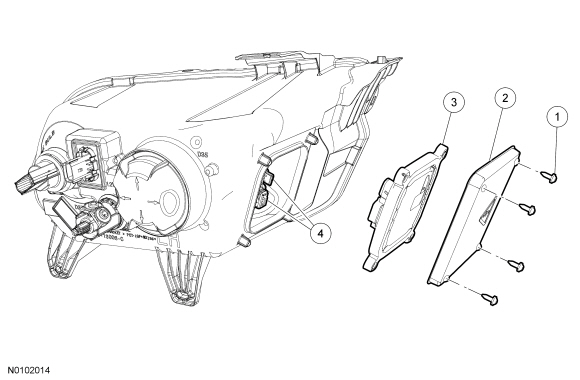

Item Part Number Description
1 — Ballast cover screws (4 required)
2 — Ballast cover (part of 13008)
3 13C170 Ballast
4 — Ballast electrical connector (part of 13008)

Removal and Installation

  1. Remove the headlamp assembly. For additional information, refer to Headlamp Assembly in this section.
  1. Remove the 4 screws and ballast cover.
  1. Disconnect the electrical connectors and remove the ballast.
  1. To install, reverse the removal procedure.
